CeramixCast

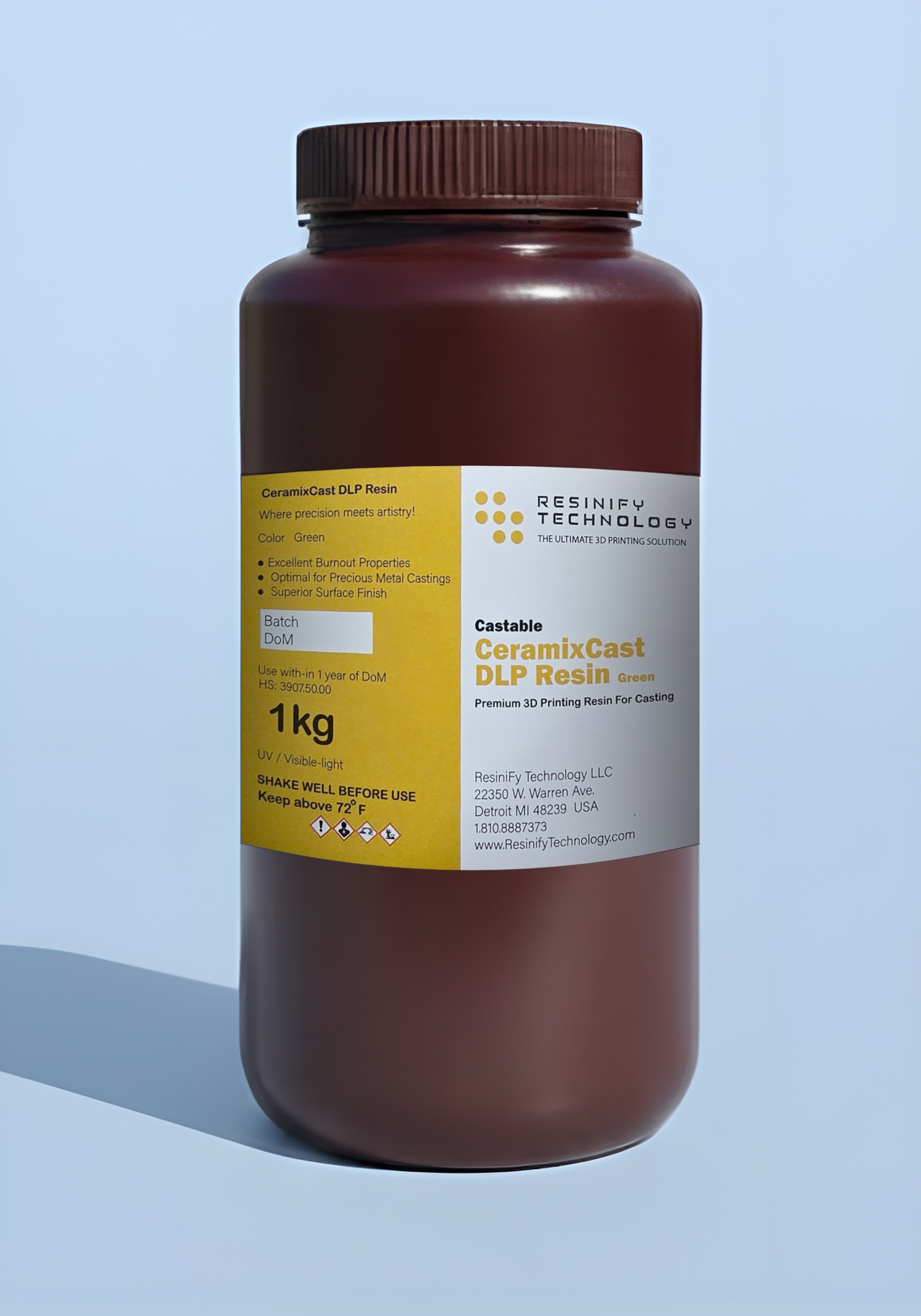

CeramixCast DLP Resin

     – Precision Investment Casting Resin for Jewelry & High-Detail Applications

🟢 Key Features:

✔ Excellent Burnout Properties – Evaporates cleanly at moderate temperatures
✔ Porosity-Free Casting – No reaction with investment materials
✔ Low Thermal Expansion – Ensures precision for jewelry & high-value applications
✔ Superior Surface Finish – Achieves ultra-smooth, high-quality results
✔ Ideal for Precious Metal Casting – Perfect for fine jewelry and technical applications

--- Product Description:

CeramixCast DLP Resin is a cutting-edge, high-precision investment casting material, engineered to deliver flawless burnout properties and superior casting results. Designed for jewelry makers, engineers, and artists, it offers low thermal expansion and smooth surface finishes, ensuring impeccable final products.

🔹 Perfect for: Fine jewelry, high-detail artistic creations, and technical casting applications.

💡 Pro Tip: Follow standard burnout procedures for optimal casting results with precious metals!

⚙️ Technical Specifications:

• Viscosity: 361.7 MPa (DIN 1342-2)
• Tensile Strength: 16.8 MPa (DIN EN ISO 527-1)
• Elongation at Break: 7.46% (DIN EN ISO 527-1)
• Flexural Strength: 23.0 MPa (DIN EN ISO 178)
• Flexural Modulus: 404.0 MPa (DIN EN ISO 178)
• Bending Strain: 10.2% (DIN EN ISO 178)
• Izod Impact (Notched): 11.03 kJ/m² (DIN EN ISO 180)
• Density: 1.178 g/cm³ (DIN ISO 1183-1)
• Hardness (Shore D): 69 Shore (DIN EN ISO 868)
• Ignition Temperature: 350°C (DIN 53765)

🛠 Applications:

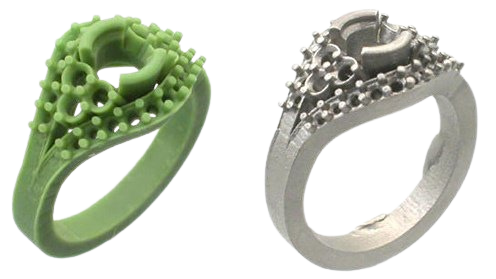

✔ Jewelry Market: Achieve highly detailed, intricate jewelry designs with precision casting
✔ Beyond Jewelry: Expand into technical and artistic applications where accuracy and surface finish are critical
